Polyurethane Entrance & Window Systems# SP-EW (caf)

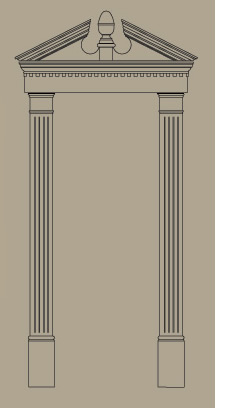

Easily create exquisite Entrance and Window Systems using polyurethane Pilasters, Crossheads, and Pediments. Just follow the five steps below
(or order a small Polyurethane Sample
High Density Polyurethane - the only kind we sell - feels, sounds, installs, and paints
just like wood... but that's where the similarities end! Read more about Polyurethane. "We installed the HD Poly entry system we bought from you and it looks fabulous!"
- N. Bousquet, GA

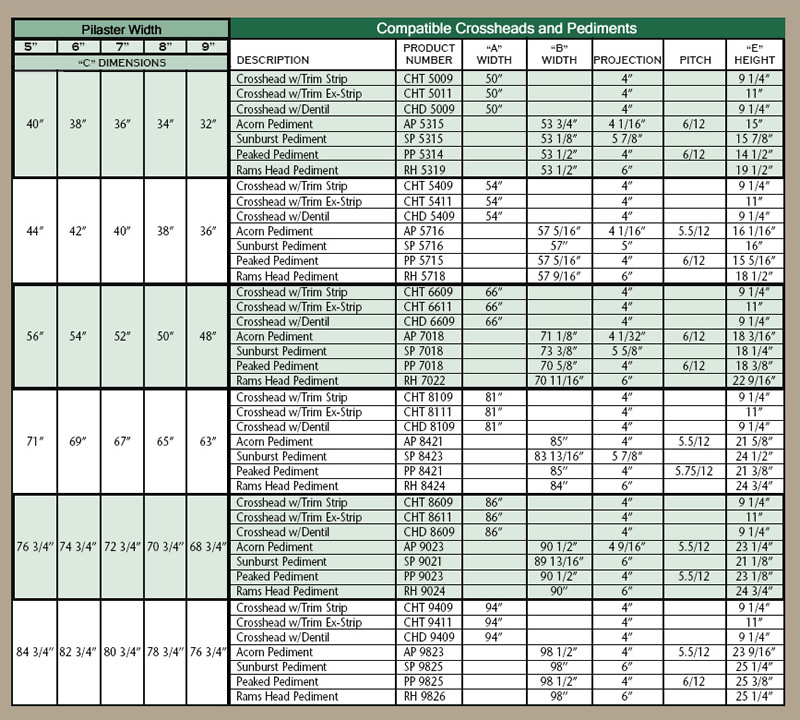

Instructions for Using the Compatibility Chart Below
1. Visit our Pilaster, Crosshead, and Pediment pages to view the possibilities.
2. Measure the width of your door or window opening.

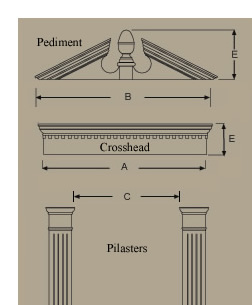

If brickmould is to remain on the door or window frame, include it in your measurement. This measurement is the "C" Dimension
in the above drawing and in the chart below (at the left under Pilaster Width). You can stop right here and call us for assistance if you prefer!
3. Locate your door or window width measurement
in the "C" Dimensions
columns of the chart below.
A. If your exact "C" measurement IS listed - Move across to the right to select your desired Crosshead and Pediment. (The same "C" Dimension may be listed twice.) Also, note the Pilaster Width(s) that are compatible with your "C" Dimension.
Example: If your "C" dimension is 36", you can choose 7" wide Pilasters with Crossheads CHT5009, CHT 5011, or CHD 5009 and Pediments AP 5315, SP 5315, PP 5314, or RH 5319; OR you can choose 9" wide Pilasters and any of the Crosshead and Pediments in the second group, starting at CHT 5409.
4. Check your chosen Crosshead, Pediment, and Pilaster measurements,
as shown in the chart, to be sure there are no existing obstructions that would prevent the installation of these items as intended. Please note in the measured drawing above that Dimension B
is slightly less than the overall width of the Pediment.
your chosen Crosshead and Pediment. Order your chosen Pilasters here.
Or order a small Polyurethane Sample
