Here Porch Example #5 is improved, despite the short Beam & Post top. Repeating Cornice Brackets are used horizontally while our special Spandrels Brackets maximize available Porch Post top by allowing Spandrels to fit between Brackets rather than above them.

Porch Posts look nicer with turned portions lower, but we're working with what we found on this porch. We've resisted moving the Handrail higher, as this would only highlight the problem.

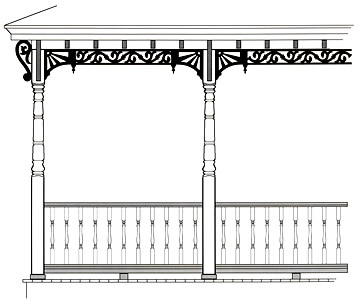

Porch Example #6
Item	SKU	Description
Porch Post	T608n42	Traditional 6"x96", with 42" base, 6' on center
Other Traditional Bracket	1121	Bird of Paradise, 1-1/2" thick, unframed
Repeating Cornice Bracket	1108	Little Swan, 12" on center, 1-1/2" thick, unframed
Bracket	1174	SR 4 Bracket, with Drop attached
Spandrel	4132	6-1/2" Wisteria Spandrel
Baluster	SM-T224-H	Traditional Baluster, 2"x24", 6" on center
Handrail	201-135	P-2 Rail, with SR2 Subrail (56-010)
Bottom Rail	5606	Sloped-top Bottom Rail, shown with Kickspace Block.

We are available by phone or email for free personalized consultation.
