Porch Example #4


(nsnf)

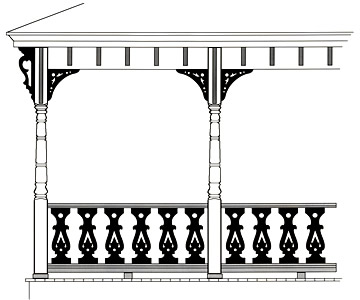

Porch Example #4


And here's a repeat of Porch Example #3, still without a true Beam. However, we've given the illusion of a beam by the use of 2x10 boards between each pair of Posts! (Notice that Posts go all the way to the eave.) Flying Circle Brackets are out of the shadows and now there's a place for Repeating Cornice Brackets installed directly onto the 2x10.

This "false beam" approach is great for existing porches built without exposed beams or for porches where height to the eave is not sufficient for a true beam above the Posts.

Porch Example #4
Item SKU Description
Porch Post T608n32 Traditional 6"x96", with 32" base, 6' on center
Post Face Bracket 1131 23" Cupid's Key, 1-1/2" thick
Repeating Cornice Bracket 1553 Bradie Bracket, 12" on center
Bracket 1114 Flying Circle Bracket, unframed
Sawn Baluster 2316 Spear Baluster, spaced 3" apart
Handrail 201-135 P-2 Rail, with SR2 Subrail (56-010)
Bottom Rail
5606
Sloped-top Bottom Rail, shown with Kickspace Block.


We are available by phone or email for free personalized consultation.
