Perhaps the spacing here is too close on both the Repeating Cornice Brackets and the Balusters, but our goal is to provide a very wide range of possibilities for your review. The tight spacing here may work for very small porches.

Close Repeating Cornice Brackets do work well at the eave of a two-story tower or turret, should you be lucky enough to have one!

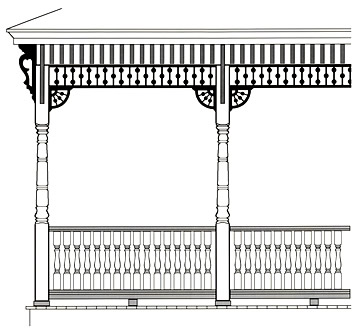

Porch Example #14
Item	SKU	Description
Porch Post	T608n32	Traditional 6"x96", with 32" base, 6' on center
Post Face Bracket	1131	23" Cupid's Key, 1-1/2" thick
Repeating Cornice Bracket	1553	Bradie Bracket, 4" on center
Spandrel	4117	8-3/4" Ball & Dowel Spandrel
Bracket	1312	9-1/2" - 3 Ball Fan Bracket
Baluster	MS-CL324-H	MS-Traditional-A, 3"x24", 4" on center
Handrail	201-070	P-3 Rail, with SR3 Subrail (56-020)
Bottom Rail	5606	Sloped-top Bottom Rail, shown with Kickspace Block.

We are available by phone or email for free personalized consultation.
